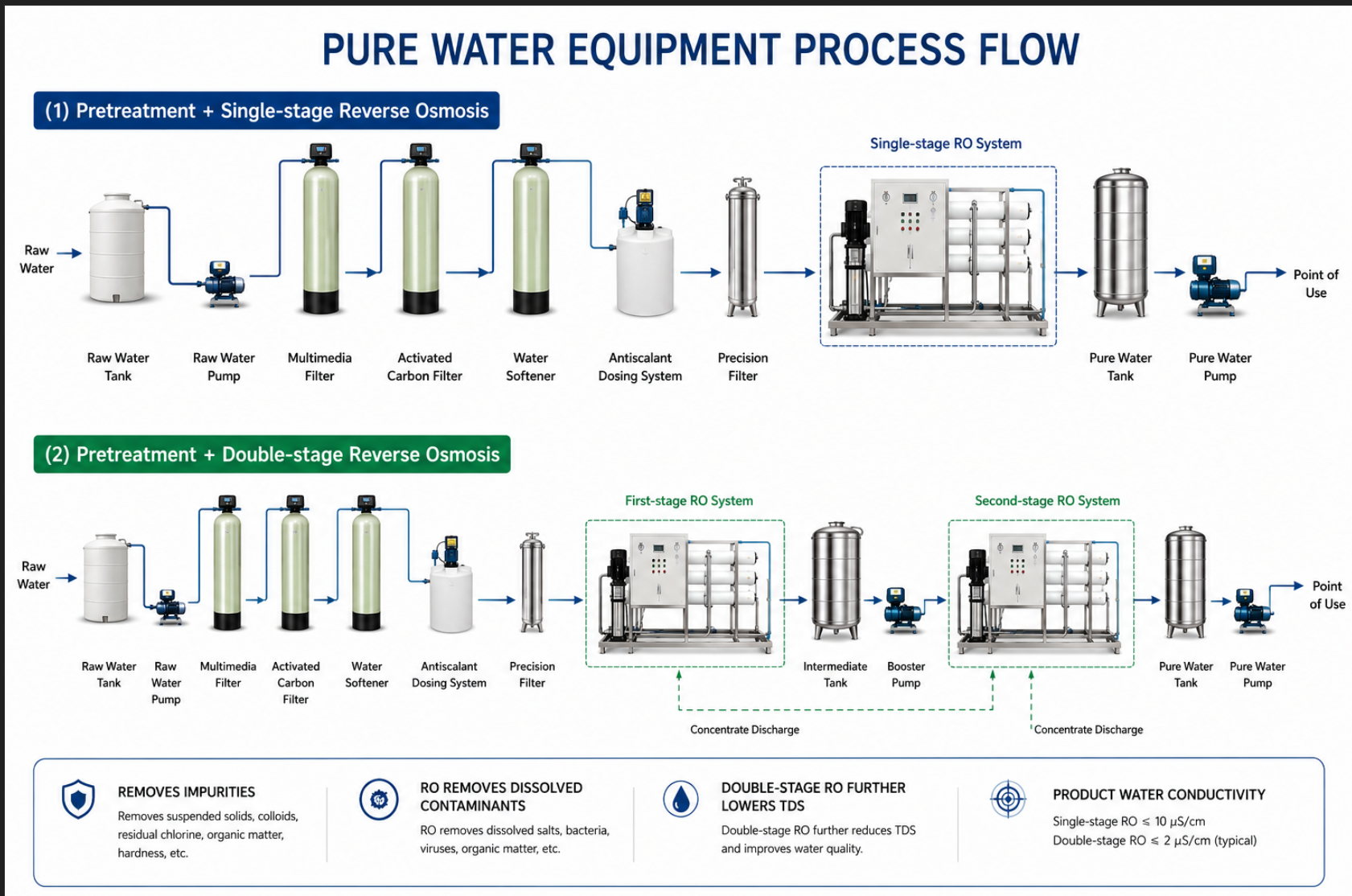

Pure water equipment process flow:

(1) Pretreatment + Single-stage reverse osmosis

(2) Pretreatment + Double-stage reverse osmosis

Pure Water Equipment Performance Introduction:

(1) The system is designed according to the raw water quality and user URS requirements, and is configured for optimal performance.

(2) Modular design: The reverse osmosis equipment and pretreatment system are integrated into a single frame, resulting in a compact structure and easy installation.

(3) Standardized design: Ensures stable operation of the pure water system and meets water quality standards.

(4) Reasonable concentrated water recycling and reuse design saves water resources.

(5) The entire system is fully automatic with PLC control. Water production, backwashing, and cleaning are all automatically controlled by the PLC, ensuring precise control while reducing the labor intensity of manual operation.

(6) Incorporating ergonomic and user-friendly design for easy operation.

(7) The reverse osmosis system is fully automatic, making operation simple and convenient.

(8) The pretreatment system uses pneumatic butterfly valves for automatic control and allows for manual backwashing, ensuring effective cleaning and filtration.

(9) Online water quality monitoring and control monitors water quality changes in real time, ensuring water safety.

(10) The system has multiple safety functions, including water shortage protection and high, low, and overpressure protection.

(11) The main components of the pure water equipment system are from leading Chinese brands, ensuring high stability.

(12) It uses leading Chinese brand reverse osmosis ultra-low pressure membranes, resulting in high desalination rate, stable operation, and low energy consumption.

(13) All main materials are from internationally renowned brands in the industry, guaranteeing quality and quantity.
